Standards for Can Ends / Lids
Industry Standards for Can Ends recommended for proper can seaming.
The seam quality produced by the Can Seamer is greatly dependant on the quality of the Cans & Ends used.
|

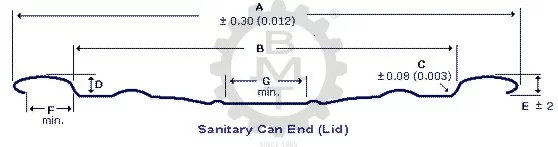

NOMINAL DIAMETER
|
(A) CURL DIAMETER
|
(B) COUNTERSINK DIAMETER
|
(C) COUNTERSINK RADIUS
|
(D) COUNTERSINK DEPTH
|
(E) ENDS PER 2 INCHES
|
(F) CURL OPENING
|
(G) EMBOSSING PANEL DIA.
|
|
| GO | NO GO | |||||||
|
202 (52)
|
61.24 (2.411)
|
51.92 (2.044)
|
52.04 (2.049)
|
0.94 (0.037)
|
2.62-2.90 (.103-.114)
|
28
|
3.33 (0.131)
|
26.19 (1.031)
|
|
207.5 (60)
|
69.01 (2.717)
|
59.44 (2.340)
|
59.59 (2.346)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.33 (0.131)
|
28.80 (1.134)
|
|
208 (61)
|
69.80 (2.748)
|
60.20 (2.370)
|
60.35 (2.376)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
32.28 (1.271)
|
|
211 (65)
|
74.70 (2.941)
|
64.95 (2.557)
|
<65.10 (2.563)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
32.238 (1.271)
|
|
300 (73)
|
82.50 (3.248)
|
72.47 (2.853)
|
<72.62 (2.859)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
32.238 (1.271)
|
|
301 (74)
|
83.77 (3.298)
|
73.69 (2.901)
|
73.84 (2.907)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
32.238 (1.271)
|
|
303 (78)
|
87.17 (3.432)
|
76.94 (3.029)
|
77.09 (3.305)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
32.238 (1.271)
|
|
401 (99)
|
109.09 (4.295)
|
98.65 (3.884)
|
98.81 (3.890)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
47.96 (1.888)
|
|
404 (105)
|
115.52 (4.548)
|
104.83 (4.127)
|
104.98 (4.133)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
50.80 (2.00)
|
|
502 (127)
|
136.91 (5.390)
|
126.11 (4.965)
|
126.26 (4.971)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
27
|
3.58 (0.141)
|
63.50 (2.50)
|
|
603 (153)
|
164.26 (6.467)
|
153.01 (6.024)
|
153.16 (6.030)
|
0.94 (0.037)
|
2.84-3.12 (.112-.123)
|
26
|
3.73 (0.147)
|
47.60 (1.875)
|
