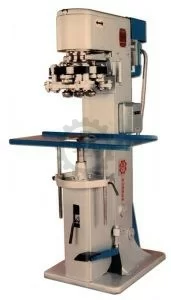

SPS:200 NON ROUND (IRREGULAR) CAN SEAMER
- Irregular Can Seamer for Non-Round shaped cans like square, rectangular, oval, etc.
- Also Used for Seaming Capacitors, Welding Electrode Cans, Fish Cans and other similar applications.
- Available with Stainless Steel Tooling, Covers, Contact Parts and Cladding.
- Heavy Duty Machine Construction.
- Seaming Chucks, Cams and Seam Rollers are CNC machined for precision.
- Semi-Automatic. Foot-pedal or Foot Switch (Pneumatic Lift) operation.
- Can remains stationary during seaming.
- 4 roller Can seaming ensures consistent and leak-proof seaming.
- Ability to accept a wide range of Can Sizes and Heights with a quick changeover.
The Can with the Lid (End) to be Seamed is placed on the lifter plate and the pedal or button are pressed (optional). The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.
The machine can be fitted with a Control Panel with Push Buttons and a Pneumatic Lifting system doing away with the mechanical foot pedal.
Video of Non Round (Irregular) Can Seamer Machine
|
Output Capacity
|
20-25 cans/min. (Operator Dependant)
|
|---|---|
|
Min./Max. Can Dia.
|
40-175 mm (1.6/8.3 in.)Â *
|
|
Max. Can/Drum Length
|
300mm (12″)*Â *
|
|
Max. Sheet Thickness
|
0.30 mm (0.01″)*
|
|
Motor Power
|
2 Hp
|
|
Air required (for Pneumatic Machines)
|
40 PSI – 15 Litres. / min. when ordered with Pneumatic Lifting System
|
|
Net Weight
|
800 Kgs. (1765 lbs.)
|
|
Gross Weight
|
950 Kgs. (2095 lbs.)
|
|
Case Dimensions
|
1800 x 750 x 1050 mm (71 x 30 x 42 in.)
|
*Machine can be modified to suit customer requirements.
SPS:320 LARGE SIZE NON ROUND (IRREGULAR) CAN SEAMER
- Irregular Can Seamer for Large Sized Non-Round shaped cans like square, rectangular, oval, etc.
- Available with Stainless Steel Tooling, Covers, Contact Parts and Cladding.
- Heavy Duty Machine Construction.
- Seaming Chucks, Cams and Seam Rollers are CNC machined for precision.
- Semi-Automatic. Foot-pedal or Foot Switch / Push Button (Pneumatic Lift) operation.
- Can remains stationary during seaming.
- 4 roller Can seaming ensures consistent and leak-proof seaming.
- Ability to accept a wide range of Can Sizes and Heights with a quick changeover.
The Can with the Lid (End) to be Seamed is placed on the lifter plate and the pedal or button are pressed (optional). The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.
The machine can be fitted with a Control Panel with Push Buttons and a Pneumatic Lifting system doing away with the mechanical foot pedal.
Machine shown without standard Safety Guards and Covers for clarity.
|
SPECIFICATIONS
|
|
|---|---|
| Output Capacity | 10/12 cans/min. |
| Min./Max. Can Dia. | 100/360 mm (4/14 in.)* |
| Max. Can/Drum Length | 450 mm (17.5 in.)* |
| Max. Sheet Thickness | 0.50 mm (0.02″)* |
| Motor Power | 3 Hp |
| Net Weight | 1400 Kgs. (3085 lbs.)) |
| Gross Weight | 1600 Kgs. (3525 lbs.) |
| Case Dimensions | 2000 x 900 x 1250 mm (78 x 36 x 50 in.) |
*Machine can be modified to suit customer’s specifications.
“BMTâ„¢ makes machines for Square Can Seaming, Irregular Can Seaming, Oval Can Seaming and Triangular Can Seaming. We also manufacture Vacuum and Nitrogen Flushing Seamers for Non-Round Cans.”
