Silencer (Muffler) Seaming Machine

SILENCER (MUFFLER) SEAMER – SRS320:SL-V2

  • For Clinching / Hemming / Seaming Tail plates & End Caps of automotive silencers & mufflers.
  • Semi-automatic operation.
  • PLC Controlled Panel.
  • Hydraulic Lifting System.
  • Ultra Heavy-duty construction.
  • Operation by Foot Switch or Dual Push Button.
  • Positive clamping system to ensure rigidity of muffler during seam operation.
  • Easy to operate, service and maintain.
Muffler Seamer, Muffler Seaming machine, Silencer Seamer, Silencer Seaming machine

The silencer / muffler is placed on the support and is held vertically by means of a non-contact magnet. The dual push buttons are pressed to begin the operation. The silencer is pneumatically clamped and the seam operation is started automatically. After completion, the seaming head is stopped and the muffler is de-clamped for unloading.
The sequence is controlled by a simple PLC (Programmable Logic Controller).

This Seamer is used for inward seaming applications. For standard double seaming of mufflers, please see our Round Can Seamer page.

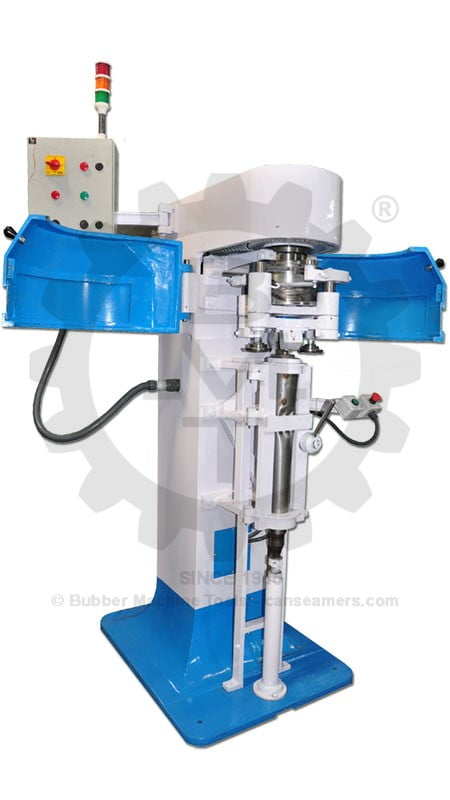

Machine shown without standard Safety Covers and Guards for clarity.
SPECIFICATIONS
Cycle Time20 Seconds (Incl loading & unloading)
Min./Max. Can Dia.60/180 mm (2.4/7.0 in.)*
Max. LengthAs per Customer Specifications
Max. Sheet Thickness1 mm (0.04″)*
Motor PowerMain: 3 HP / 5 HP (depending on sheet thickness)
Hydraulic Power Pack: 2HP
Air required
2.5 Bar
Net Weight1500 Kgs. (3300 lbs.)
Gross Weight1750 Kgs. (3850 lbs.)
Case Dimensions1320 x 950 x Ht (as per muffler height).
(52 x 37 x ht.)

*Can be modified to suit customers requirements and applications.

“We are your one stop source for Seaming machines for Mufflers, Silencers and Exhaust Systems. We have End Cap Curling machines, End Cap Hemming machines and End Cap Seaming machines.”
