Round Can Seaming Machines – Semi Automatic

SRS:200:PN ROUND CAN SEAMER
(Pneumatic Lifting System)

  • Semi-Automatic Round Can Seaming machine.
  • Dual Push Button or Foot Switch operation with Pneumatic Lifting system.
  • Can be fitted with an optional Automatic End/Lid Feeder.
  • Available with Stainless Steel Tooling, Covers, Contact Parts and Cladding.
  • Heavy Duty Construction with all moving parts CNC Machined.
  • 4 Roller Seaming ensures consistent and leak proof Seaming.
  • Ability to seam a wide range of Can Diameters with a quick changeover of tooling. For Height changes only a simple setting is required (no change parts).
  • PLC or Timer based Control Panel (depending on order configuration).
tin sealing machine, tin sealer, can sealer, can seamer, round tin sealing, beer tin sealer, food canning

CE Model with Auto Lid Feed & Stainless Parts

CE Model with Auto Lid Feed & Stainless Parts

CE Model with Auto Lid Feed & Stainless Parts

semi automatic round can seamer, semi-automatic round can seaming machine, can seaming, can closing, can closer, seamer, seaming
semi automatic round can seamer, semi-automatic round can seaming machine, can seaming, can closing, can closer, seamer, seaming

With Automatic Lid/End Feeding System

With Automatic Lid/End Feeding System

With Automatic Lid/End Feeding System

Arrow
Arrow
Slider

With Foot Switch: The Can with the Lid (End) to be seamed is placed on the lifter plate. A Foot Switch (electronic) is pressed and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.

With Dual Push Buttons: The Can with the Lid (End) to be seamed is placed on the lifter plate. The dual push buttons are simultaneously pressed and released. The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.

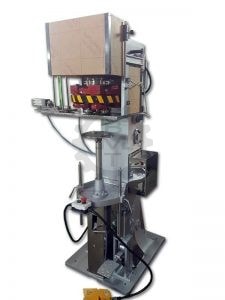

SRS:200PN with Auto Lid Feed option.
Machine shown without standard Safety Covers and Guards for clarity.

Output Capacity25-30 cans per minute
Min./Max. Can Dia.40/210 mm (1.6/8.3 in.)*
Max. Can/Drum Length300 mm (12 in.)output Capacity*
Max. Sheet Thickness0.30 mm (0.01″)*
Motor Power2 Hp
Air required
>2.5 Bar-200 lt/min.
Net Weight800 Kg. (1765 lbs.)
Gross Weight950 Kg. (2095 lbs.)
Case Dimensions1800 x 750 x 1050 mm
(71 x 30 x 42 in.)

* Machine can be modified to suit customer requirements.

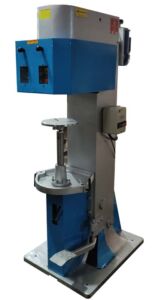

SRS:200 ROUND CAN SEAMER
(Mechanical Foot Pedal Operation)

  • Semi-Automatic Round Can Seaming machine.
  • Foot Pedal Operation.
  • Heavy Duty Construction with all moving parts CNC Machined.
  • 4 Roller Seaming ensures consistent and leak proof Seaming.
  • Ability to seam a wide range of Can Diameters with a quick changeover of tooling. For Height changes only a simple setting is required (no change parts).
tin sealing machine, tin sealer, can sealer, can seamer, round tin sealing

CE Model with SS Covers and Contact Parts

CE Model with SS Covers and Contact Parts

CE Model with SS Covers and Contact Parts

Round Can Seaming machine, can closer, tin can sealer, tin can sealing machine

Shown without Safety Covers for Clarity

Standard Model shown without Guards

Standard Model shown without Guards

Arrow
Arrow
Slider

The Can with the Lid (End) to be seamed is placed on the lifter plate and the pedal is fully pressed and released. The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position, ready for the next Can.

Output Capacity25-30 cans per minute (operator dependant)
Min./Max. Can Dia.40/210 mm (1.6/8.3 in.)*
Max. Can Length300 mm (12 in.)*
Max. Sheet Thickness0.30 mm (0.01″)*
Motor Power2 Hp
Net Weight800 Kg. (1765 lbs.)
Gross Weight950 Kg. (2095 lbs.)
Case Dimensions1800 x 750 x 1050 mm
(71 x 30 x 42 in.)

*Seaming Machines can be modified to suit customer requirements

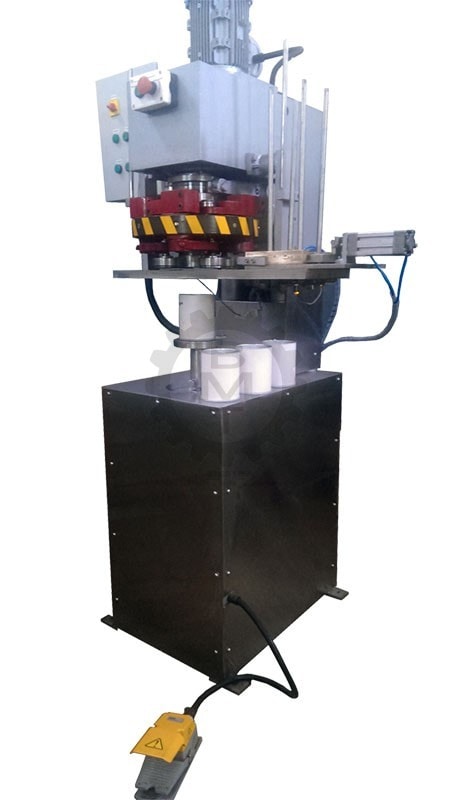

SRS:200:TT Stand Mount Semi-Automatic Round Can Seamer

  • Will seam metal tops on to Metal, Composite (paper) or Plastic Cans.
  • Semi-Automatic. Operated through Foot Switch or Push Buttons.
  • 4 Roller Seaming ensures accurate and consistent Seams.
  • Cans remain stationary during seaming.
  • Pneumatic Lifting System.
  • Automatic Lid/End Feed Option.
  • Compact Footprint makes it ideal for Lab Use.
  • Heavy Duty Body made from Close Grain Cast Iron.
  • Ability to accept a large range of Can Diameters & Heights with a quick changeover time.
  • Exposed metal parts are powder coated for durability and finish.
  • CE model and Full Stainless Steel model available.
  • Easy to operate, maintain and service.
Laboratory Can Seamer, Compact Can Seamer, Compact can seaming machine, table top seaming machine, table top seamer, table top beer canner, beer canning, tin packing machine

The Can to be Seamed is placed on the lifter plate and the Foot Switch/Push Button is pressed. The Can is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.

Technical Specifications
Output Capacity20-25 cans per minute (operator dependant)
Diameter Range40mm to 200mm*
Min. / Max. Can Height70mm to 250mm*
Max. Sheet Thickness0.30mm*
Motor Power2 HP / 1.5 Kw
Air Required40 PSI – 15 Litres. / min. (approx)
Net Weight450 Kgs. approx.
Gross Weight600 Kgs. approx.

*Machine can be modified to suit customer requirements.

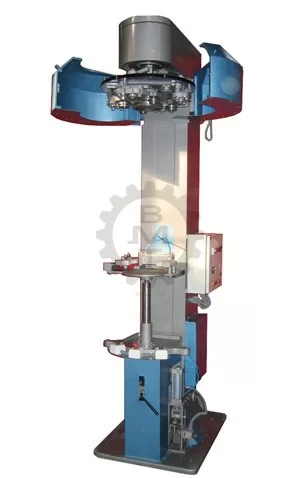

SRS:320:DRUM SEAMER

  • Round Drum Seamer for large size Drums and Containers
  • Heavy Duty Machine Construction.
  • Seaming Chucks and Seam Rollers are CNC machined for precision.
  • Semi-Automatic. Foot-pedal or Foot Switch (Pneumatic Lift) operation.
  • Drum remains stationary during seaming.
  • 4 roller Drum seaming ensures consistent and leak-proof seaming.
  • Ability to accept a wide range of Drum Diameters and Heights with a quick changeover.
  • Easy to Operate, Service and Maintain.
15kg Seamer, 15lt seamer, non round can seamer, large can seamer, irregular seamer, ghee seamer, ghee tin sealing machine, tin sealer

The Drum with the Lid (End) to be Seamed is placed on the lifter plate and the pedal is pressed. The Drum is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Drum are automatically brought down to the rest position.

The machine can be fitted with a Control Panel with Push Buttons and a Pneumatic Lifting system doing away with the mechanical foot pedal.

Output Capacity6/8 Drums/min.
Min./Max. Can Dia.100/400 mm (4 / 15 in.)*
Max. Can/Drum Length400 mm (15.75 in.)*
Max. Sheet Thickness0.50 mm (0.02″)*
Motor Power3 Hp
Net Weight1050 Kg. (1765 lbs.)
Gross Weight1200 Kg. (2095 lbs.)
Case Dimensions1800 x 750 x 1050 mm
(71 x 30 x 42 in.)

*Machine can be modified to suit customer requirements.

“Our products include Can Seamers, PET Can Seaming Machines, Composite Can Seaming machines, Craft Beer Canners, Tin Sealing machines, Can Closers and Can Closing machines.”
