Filter Seaming Machines – Semi-Automatic

SRS:320:FTR  and SRS:320:PN FILTER SEAMER

  • Filter Seamer for Seaming spin-on oil filters for automobile, industrial and hydraulic applications.
  • 4 roller seaming head ensures leak proof seaming.
  • Seaming arms and levers profile cut from steel plate to ensure rigidity.
  • Heavy-duty construction for lifetime trouble-free performance.
  • All moving parts are CNC machined for precision.
  • Improved Seaming Head Design for Seaming Filters with Sheet Thickness’ up to 1.50m*.
  • Available in semi-automatic foot pedal, foot switch or dual push button operation.
  • Can use pre-curled or straight cover assemblies.
  • Quick changeover of seamer tooling.
  • Easy to Operate, Maintain and Service.
filter seaming machine, filter seamer, spin-on filter seamer, cav filter seamer, CAV, oil filter sealing machine

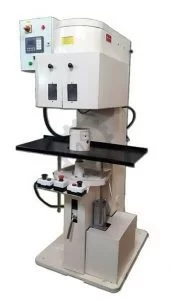

CE Model with Dual Push Button Operation

CE Model with Dual Push Button Operation

CE Model with Dual Push Button Operation

Filter Seaming Machine, filter seamer, spin on filter seaming, seamer

Pneumatic Lifting System with Foot Switch

Pneumatic Lifting System with Foot Switch

Pneumatic Lifting System with Foot Switch

Arrow
Arrow
Slider

SRS:320:FTR Model: The FIlter with the Cover Assembly to be seamed is placed on the lifter plate and the pedal is fully pressed and released. The Filter is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Filter are automatically brought down to the rest position.

SRS:320:FTR:PN Model: The FIlter with the Cover Assembly to be seamed is placed on the lifter plate. A Foot Switch or Dual push buttons are pressed and released. The Filter is lifted to the Seaming Chuck and the seaming operation begins. After completion, the lifter plate with the seamed Can are automatically brought down to the rest position.

Machine shown without standard Safety Guards and Covers for clarity.

Output Capacity10-15 filters/min. (operator and sheet thickness dependant)
Min./Max. Can Dia.40/210 mm (1.6/8.3 in.)*
Max. Can/Drum Length250 mm (10 in.)*
Max. Sheet Thickness1.50 mm (0.06″)*
Motor Power3 HP or 5 HP (sheet thickness dependant)
Air required (SRS:320:FTR:PN)
>2.5 Bar-200 lts./min.
Net Weight1050 Kgs. (2320 lbs.)
Gross Weight1250 Kgs. (2755 lbs.)
Case Dimensions1800 x 750 x 1050 mm
(71 x 30 x 42 in.)

*Machine can be modified to suit customer requirements and applications.

“BMT offers High Quality and Economically priced options for Filter Seaming Machines for a large range of Filters. We make CAV Filter Seamers, Spin-On Filter Seamers, Oil Filter Seamers, Air Filter Seamers and Fuel Filter Seamers.”
