Fully Automatic Round Can Seamers

SRS:200:FA-V3 SINGLE HEAD FULLY AUTOMATIC ROUND CAN SEAMER

  • Fully automatic Single Head round can seamer
  • PLC Based Control Panel with Touch Screen Controls
  • Used for Seaming Metal, Composite or PET Cans with Metal Lid
  • Lid/End Feeder for automatic dispensing of Lids
  • Seaming Area is covered with a transparent Acrylic Cover for unobstructed view of the working area and total operator safety
  • Contact parts and Tooling made from Stainless Steel / Brass (optional)
  • Adheres to International Safety Standards
  • No Can – No Lid & No Can – No Seam system
  • Integrated 1.5m Input/Output Conveyor
  • Available in various configurations to suit customer requirements
Fully Automatic Round Can Seamer, Double Seamer, Fully Auotmatic Round Can Seaming machine, beer seaming, food canner, canner machine, can sealer
Automatic Round Can Seamer, Tin Sealing machine, Automatic Seaming, automatic seamer

CE model with Complete Machine Enclosure

CE model with Complete Machine Enclosure

CE model with Complete Machine Enclosure

Arrow
Arrow
Slider

Cans are fed from an existing conveyor or a rotary table onto the machine conveyor. They are automatically indexed into the Seaming system.
The Ends are placed on to the Can, it is Seamed and exited at the output side of the Conveyor.
The machine can be fitted with several options such as Nitrogen Spraying, Product Filling Nozzle, Weight Checking system, etc.

SPECIFICATIONS – SRS:200:FA-V3
Output CapacityUp to 30 cans per minute (size and Product dependant)
Max. Can Height300mm (11.80″)*
Max. Can Diameter210mm (8.00″)*
Max. Sheet Thickness0.30 mm (0.01″)*
Motor Power2HP
Air required
4 Bar
Net Weight1200 Kgs. (2640 lbs.)
Gross Weight1400 Kgs. (3080 lbs.)
Case DimensionsDependant on Can Size

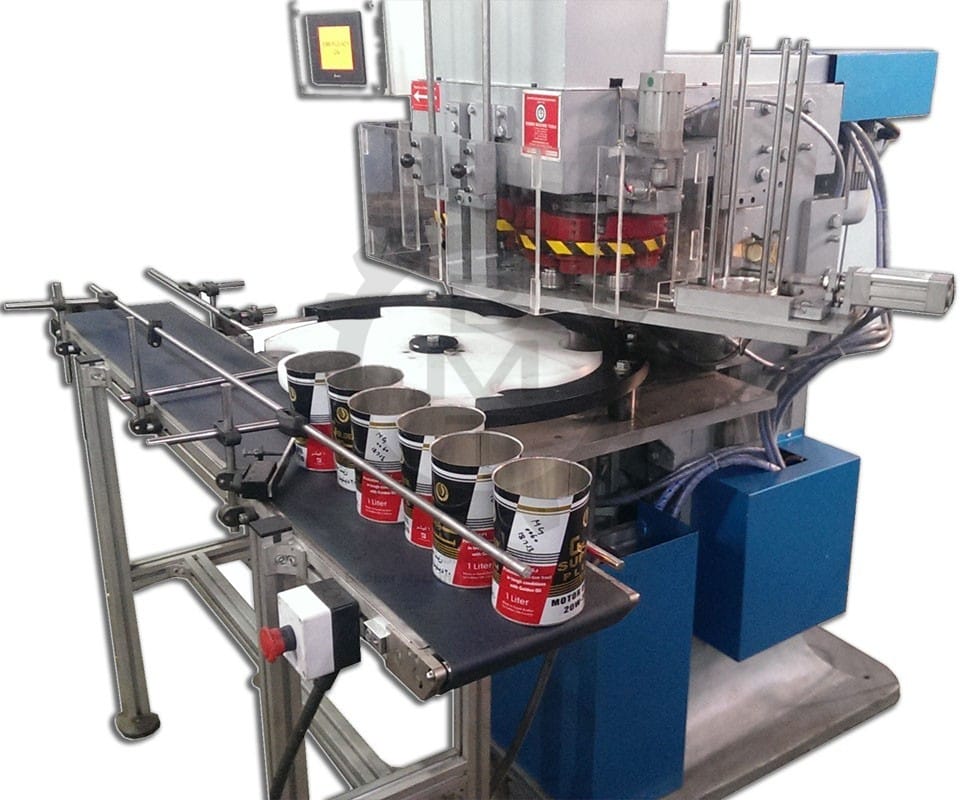

SRS:200:DUO DOUBLE HEAD FULLY AUTOMATIC ROUND CAN SEAMER

  • Fully Automatic Double Head Round Can Seamer
  • PLC Based Control Panel with Colour Touch Screen Controls
  • Configurable Servo Driven Indexer
  • Suitable for Seaming Metal, Composite or Plastic (PET Cans) with Metal Ends
  • Automatic End Dispenser
  • No End – No Seam + No Can – No Seam protection system
  • Seaming Area is covered with a transparent Acrylic Cover for unobstructed view of the working area and total operator safety
  • Available with optional Complete Enclosure in Regular or Stainless Steel
  • Contact parts and Tooling can be made from Stainless Steel
  • Adheres to International Safety Standards. CE marking possible
  • Integrated 1.5m Input/Output Conveyor
  • Available in various configurations to suit customer requirements
Double Head Fully Automatic Seamer, Double head seaming machine, double seamer, Can Seamer, Can Seaming machine

Cans are fed from an existing conveyor or a rotary table onto the machine conveyor. They are automatically indexed into the Seaming system.
The Ends are placed on to the Can, it is Seamed and exited at the output side of the Conveyor.
The machine can be fitted with several options such as Nitrogen Spraying, Product Filling Nozzle, Weight Checking system, etc.

SPECIFICATIONS
Output CapacityUp to 40 cans per minute (size  & product dependant)
Max. Can Height300mm (11.80″)*
Max. Can Dia.140mm (5.50″)*
Max. Sheet Thickness0.30 mm (0.01″)*
Motor Power2HP
Air required
4 Bar
Net Weight1200 Kgs. (2640 lbs.)
Gross Weight1400 Kgs. (3080 lbs.)
Case DimensionsDependant on Can Size

“Our products include Metal Can Seaming Machines, PET Can Seamers, Composite Can Seamers, Beer Canning Machines, Beverage Can Seamers and Tin Can Packing machines”
